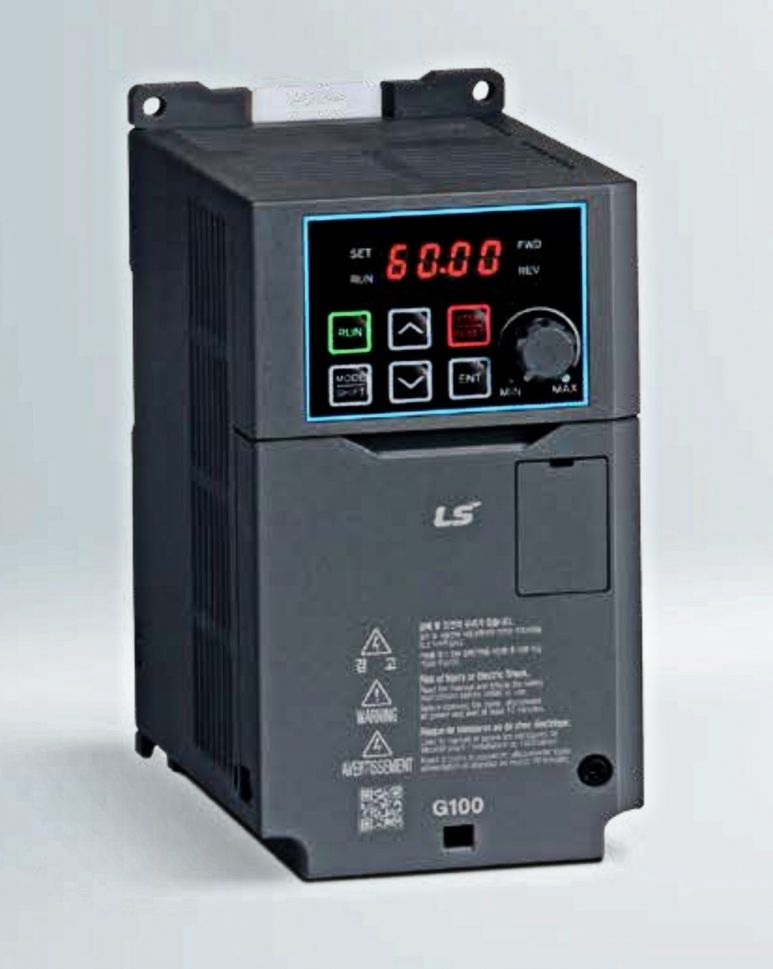

Convertizor de frecventa LS ELECTRIC LV0008G100-4EOFN

Seria G100 - Convertizoare de frecventa utilizate in aplicatii industriale pentru reglajul motoarelor trifazate care actioneaza ventilatoare / pompe, precum si pentru elevatoare, conveioare, compresoare.

Caracteristici:

• Fiabilitate sporita: Built-in EMC Filter, Reinforced Material Design,
• Performate superioare: Application Adaptability (Heavy Duty / Normal Duty), Enhanced V/F Performance, More Powerful Sensorless Control function,
• Confort in utilizare: Instalare, utilizare si intretinere usoara, Built-in Potentiometer, DIN rail Mountable, Output 2 Relays, Quick Parameter Setting Group, Various Communication Options (ModBus, Profibus-DP, CANopen, 2 Port EtherNet/IP), SMART Copier connection

Control: V/F, Slip Compensation, Sensorless Vector Frequency Setting

Functii: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire mode

Tensiune intrare: 400 V/3 ph - 50 Hz.

Tensiune iesire: 400 V/3 ph - max.400 Hz.

​Grad de protectie: IP20.

​Domeniu de functionare: temperatura cuprinsa intre -10 ... +50 C, umiditate relativa max.95%.
